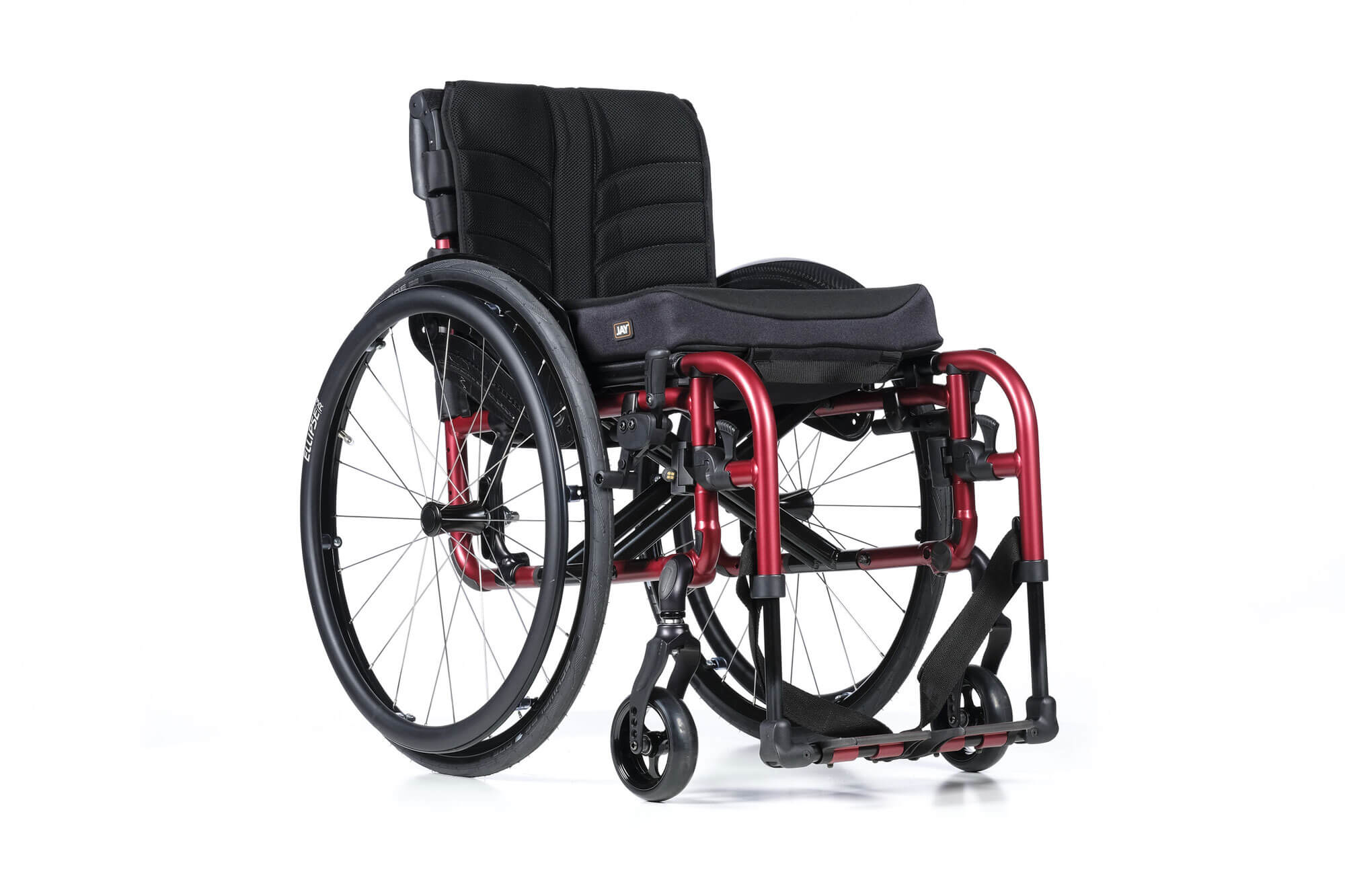

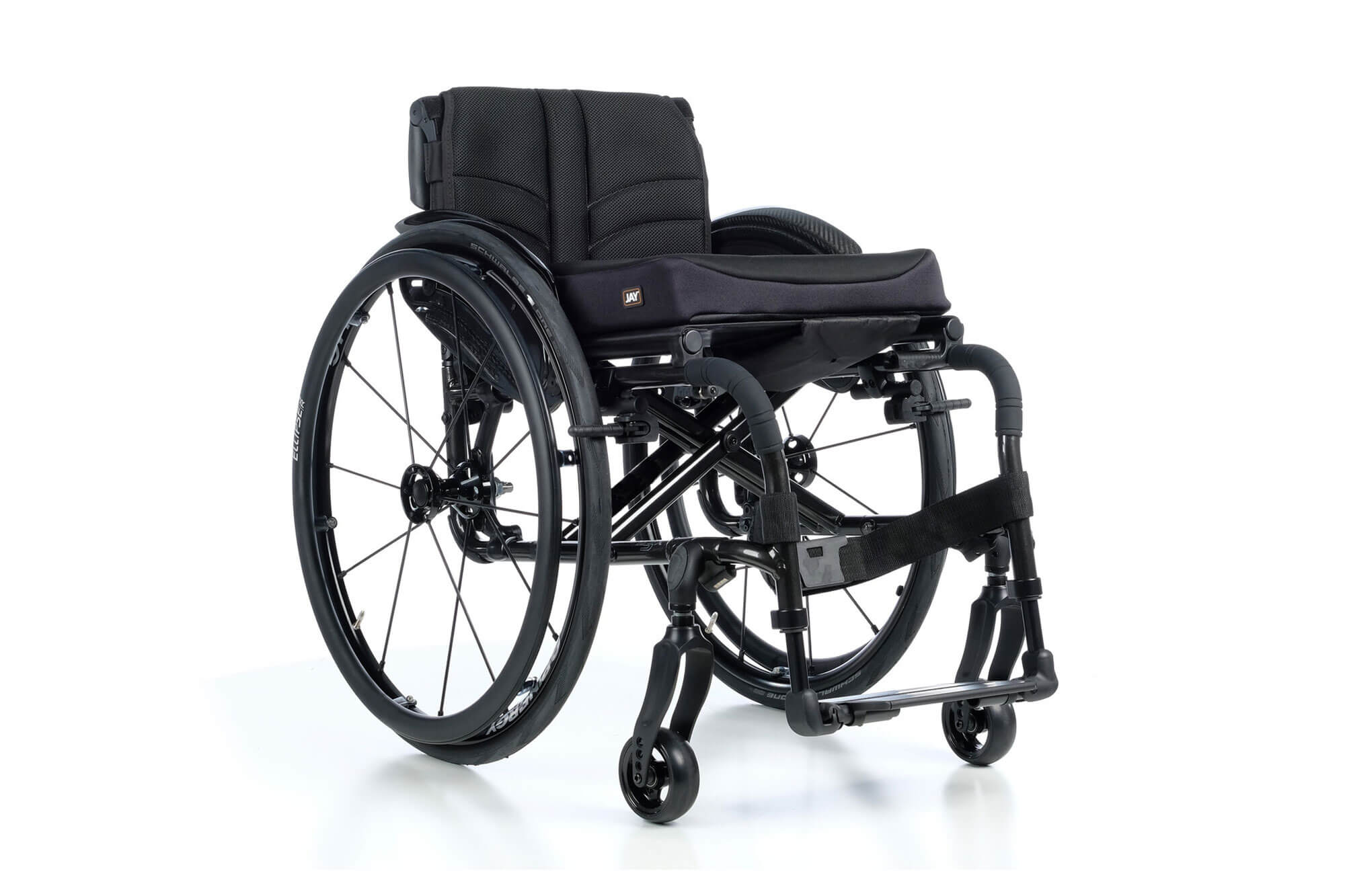

The QS5 X is an active wheelchair built for those who want freedom without compromise. Its innovative FreeFold system makes folding simple and saves energy, while the optional folding fixation keeps your chair securely locked during transport. Built from heat-treated 7000 series aluminum, the QS5 X combines strength with an ultra-lightweight design for easy lifting and handling. Plus, its oval-tubed 4-arm cross brace delivers a ride quality comparable to rigid frames.
Key Features:

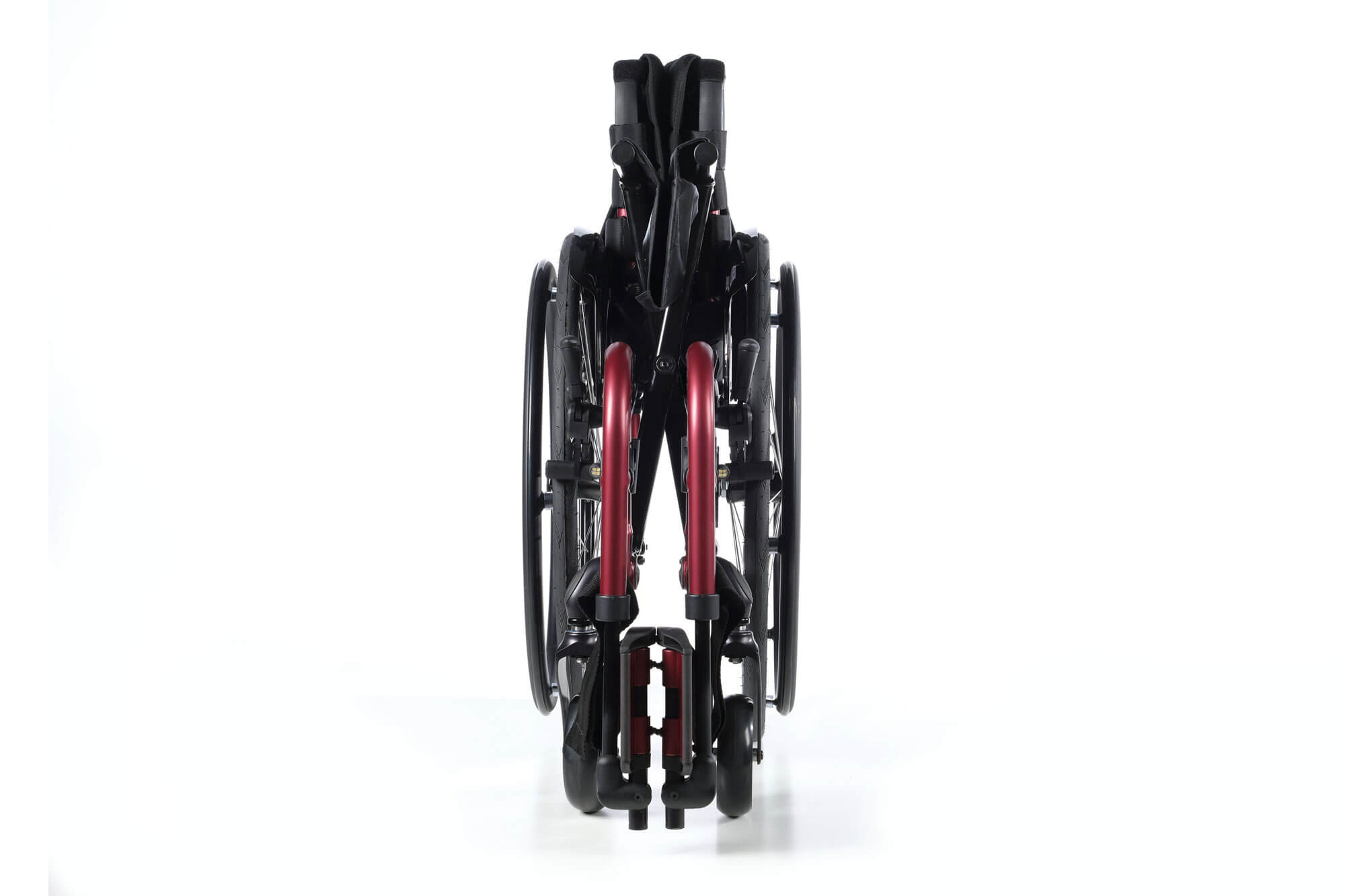

- FreeFold technology – reduces folding effort by 40%
- Optional folding fixation for secure transport
- Ultra-lightweight – from just 7.3 kg (without wheels)
- Heat-treated 7000 series aluminum for durability
- Smooth ride performance similar to rigid chairs
Width: SW + 180/240/270 mm at 0, 2, 4° camber and 25″ wheels
Length:1113 mm
Height:1020 mm
Seat Width:340 – 540 mm (in 20 mm steps)
Seat Depth:340 – 500 mm
Front seat height:360 – 540 mm
Rear seat height:350 – 520 mm
Backrest Height:250 – 500 mm
Frame Angle: Swing Away: 70/80/90°, Fixed-Front: 75/85°
Maximum Safe Slope:7°
Rear Wheel Size:22″, 24″, 25″, 26″
Front Wheel Size:4″, 5″, 6″, 7″
Colours:22 Available
Performance/Weights
Frame Type: Folding
Frame Version: Swing Away / Fixed Front
Material:7000 Series Aluminium
Maximum User Weight:140 kg
Total Weight: Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg
Dismantled Weight: Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)
Transportation
Crash Tested? This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
For product advice, further information or to arrange a home demonstration contact our friendly team today, alternatively feel free to visit our showrooms where our advisors will be happy to help you and products can be taken away or we can arrange delivery to your home address.
Why is this product not priced and available to purchase online? This is due to our ethical policy regarding online sales, which can be viewed here.
